Technology

PV Technology Progression

PV cell technology Progression
Nano technology Improvement
Traditional PV
(Crystalline-Silicon)

➤ PV Cell in form of silicon wafer
➤ Max. Renewable Energy Generation

PV cell technology Progression
BIPV / Thin Film
(Crystalline-Silicon / CIGS / CdTe)

➤ Structural Glass integrated w/ PV cell or thin film
➤ Better Aesthetics
➤ Best suited to Building-Integration Application

Nano technology
Improvement
AIPV

➤ Structural Glass integrated w/ thin-film
➤ Air-quality Improvement
➤ Self-Cleansing Surface
➤ Disinfection
➤ De-odorization
➤ Best suited to Building-Integration Application

Summary of Solar Application Performance

TypeAIPV
(c.w./ CdTe Cells)		BIPV/Thin Film
(c.w. Crystalline-Si Cells, CIGS and CdTe)		Traditional PV
(Crystalline-Si Cells)
Power Generation
BIPV Application c.w./ Aestheticism

•transparent & homogeneous appearance

•choice of colour, size & shape
Air Purification

ISO 22197-1:2016
Self Cleansing

BS EN 1096-5

Structural Glass to be Tempered and 100% heat-soak tested

PV cells – non-combustibility tested

SolarIAQ is a proprietary nano thin film which is transparent, colourless, ultra-clear, molecular-bonded onto glass surfaces providing the following functions:

  • Air pollutant decomposition (ISO 22197-1)
  • Self-Cleansing (BS EN 1096-5)
  • Anti-bacterial & virucidal (ISO 22196, EN 14476)
  • Anti-Abrasion (ASTM D2486)

Self-Cleansing Principle

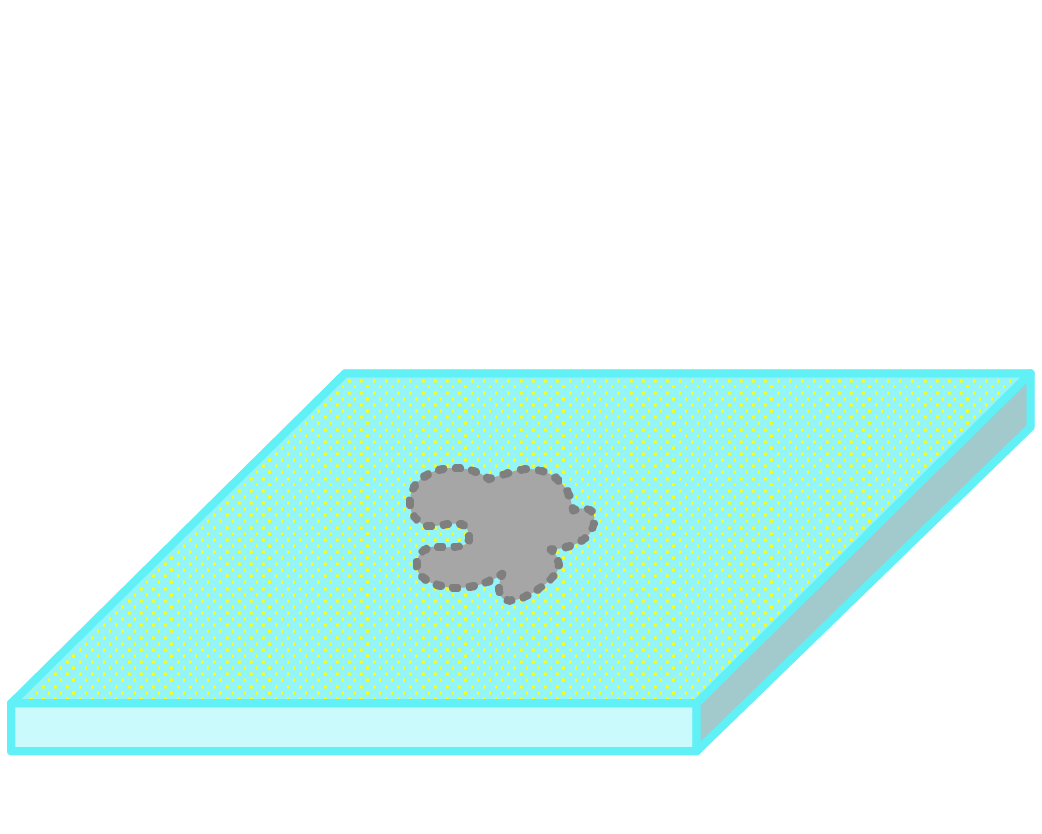

Dirt arrived on SolarIAQ surface
1

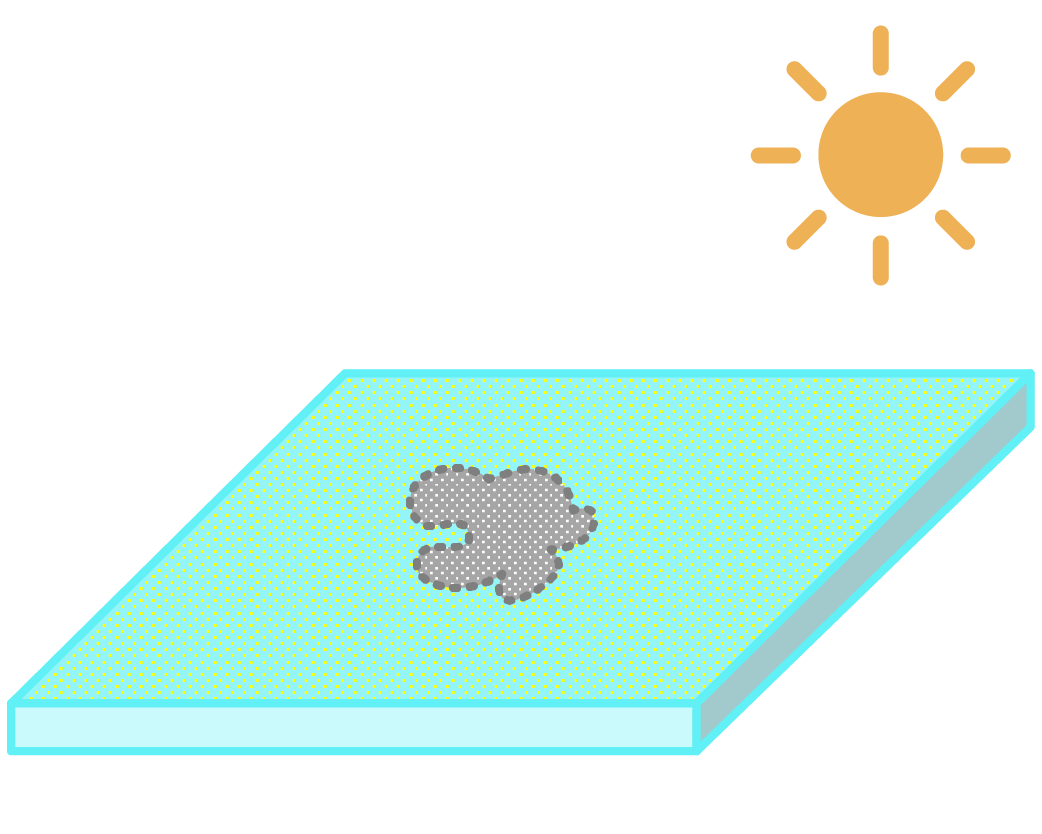

Organic adhesion decomposed
2

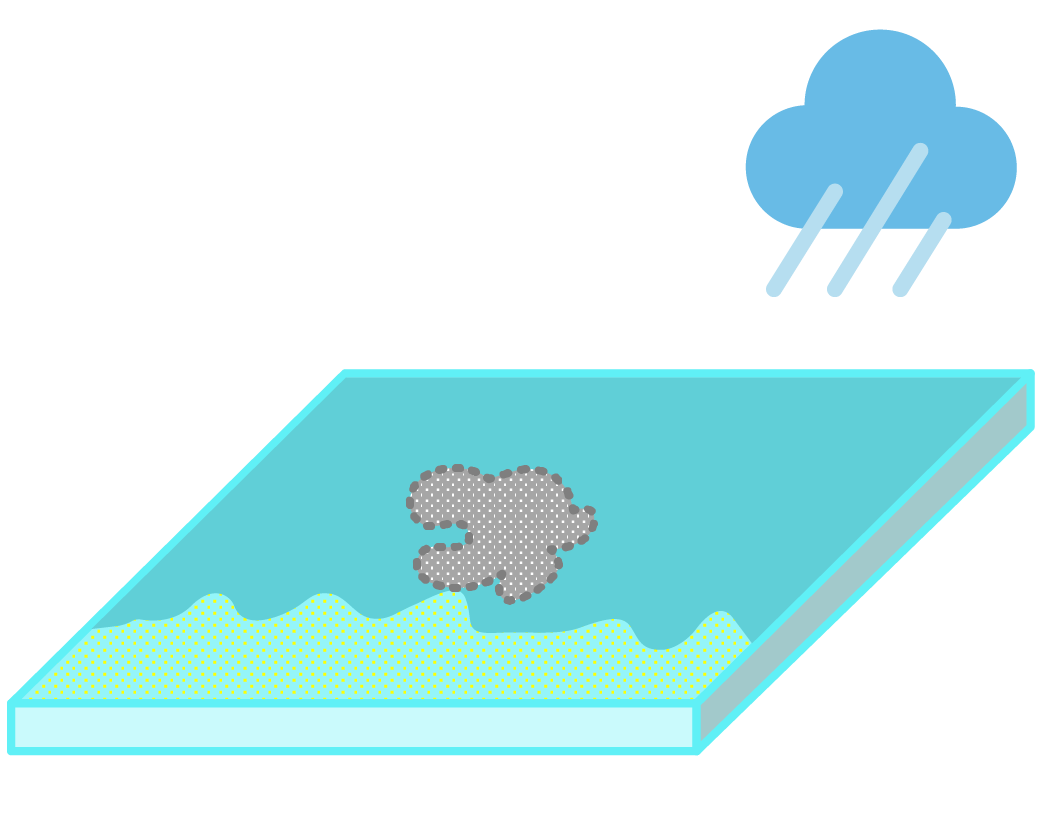

Rain forms water film on surface
3

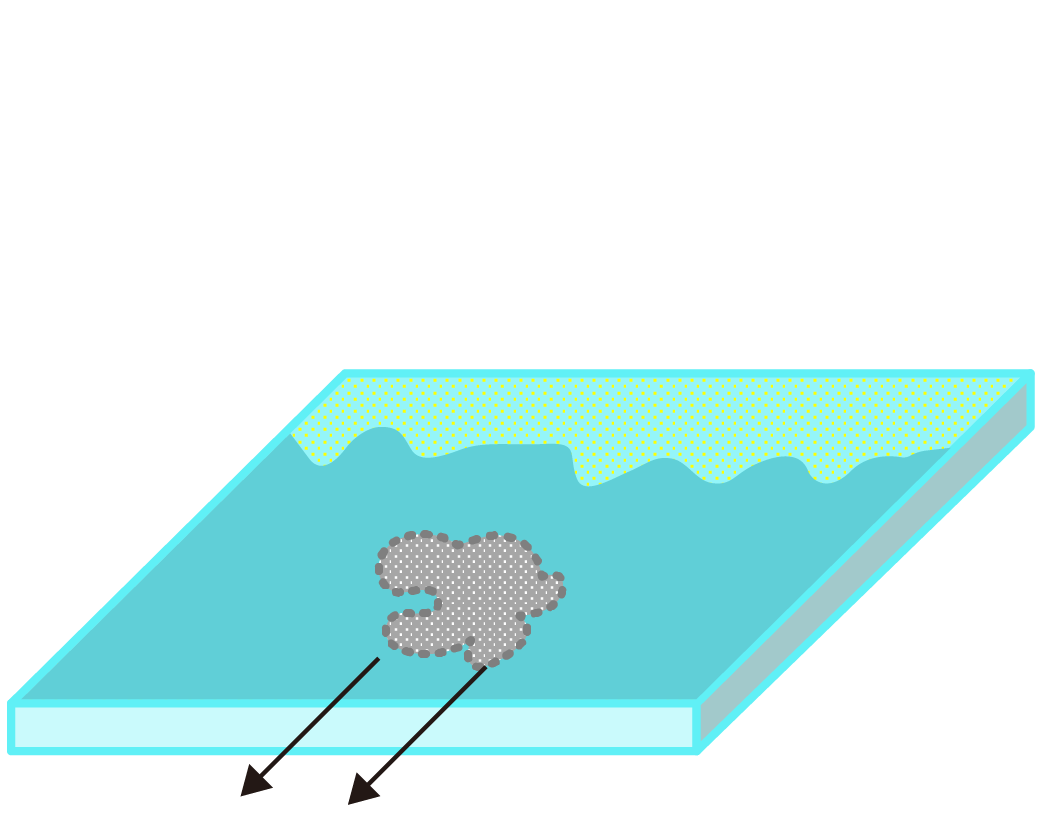

Dirt washed away
4

Flexible Module Options

Custom Transparency
0%, 20%, 40%, up to 80%
Custom Color Option
17+ choices
Custom Shape Option
Different Shape/Size
Custom Thickness
To meet Structural Requirement
